KF25 Uhlobo oluvaliweyo ngokupheleleyo lwePlastiki yoQoqo lweChayini yokutsalwa koMfanekiso
  • I-KF25 Uhlobo oluvaliweyo ngokupheleleyo lwePlastiki yoQoqosho lwe-Economical Plastic Drag Chain

I-KF25 Uhlobo oluvaliweyo ngokupheleleyo lwePlastiki yoQoqosho lwe-Economical Plastic Drag Chain

Inkcazelo emfutshane:

Iplastiki yeNyiloni yePlastiki yePA66 yokutsala amatyathanga, uhlobo oluvaliweyo ngokupheleleyo uyilo olutsha lombala omnyama olungiselelwe umbala weqhosha.

KF25 isayizi encinci enzulu evaliweyo epheleleyo edibeneyo yokutsala intambo yamatyathanga, sinayo 25*38, 25*50, 25*57, 25*75, uhlobo olune, kunye neradiyasi yokugoba esinayo R55/75/100/125/150.Ukuba iintambo zakho okanye iityhubhu zikhulu ngakumbi, ungakhetha amanye amakhonkco amakhulu ekhebula.


Iinkcukacha zeMveliso

Iithegi zeMveliso

Iplastiki yeNyiloni yePlastiki yePA66 yokutsala amatyathanga, uhlobo oluvaliweyo ngokupheleleyo uyilo olutsha lombala omnyama olungiselelwe umbala weqhosha.

KF25 isayizi encinci enzulu evaliweyo epheleleyo edibeneyo yokutsala intambo yamatyathanga, sinayo 25*38, 25*50, 25*57, 25*75, uhlobo olune, kunye neradiyasi yokugoba esinayo R55/75/100/125/150.Ukuba iintambo zakho okanye iityhubhu zikhulu ngakumbi, ungakhetha amanye amakhonkco amakhulu ekhebula.

Iimpawu zemveliso zichazwa ngobude * ububanzi bangaphakathi, iyunithi yi-MM, kwaye ixabiso leyunithi libhekiselele kubude obungaphakathi be-1 yemitha kubandakanywa amajoyina angatshintshiyo kuzo zombini iziphelo.

Ukuphakama kwekhonkco lokutsala emva kokugoba = ukugoba irediyasi * Z + ubude bangaphandle

Umzekelo: 25*38, ukugoba radius R55

Ubude bubonke bekhonkco lokutsala emva kokugoba=55*2+40=1500mm

Xa uqulunqa iimfuno zeentambo zentambo kufuneka zithathwe xa ukhetha okokuqala uhlobo lwekhonkco / umthwali kwaye okwesibini uhlobo lweentambo eziza kufakwa kwikhonkco, zilandelwa yi-layout of cables in the chain.Uninzi lwabavelisi betsheyini abaphambili banamaxwebhu achaza indlela yokukhetha kunye nokuseta amatyathanga abo ukuqinisekisa obona bomi bubude betsheyini kunye nemixholo yalo.Ukulandela ezi zikhokelo kule leta kuya kuqinisekisa ukuba ubomi buqhelekile kumjikelo wezigidi ezili-10, kodwa kuya kuvelisa amatyathanga abanzi ngokugqithisileyo esingenako ukungena lula kwizicelo zethu.

Itheyibhile yoMzekelo

Umzekelo Ngaphakathi H×W ngaphandle H*W Isimbo Ukugoba iRadiyosi I-pitch Ubude obungaxhaswanga
KF 25x38 25x38 40x63 Zivalwe ngokupheleleyo Iziciko eziphezulu nezisezantsi zinokuvulwa 55. 75. 100. 125. 150 47 1.5m
KF 25x50 25x50 40x74
KF25x57 25x57 40x81
KF25x75 25x75 40x99

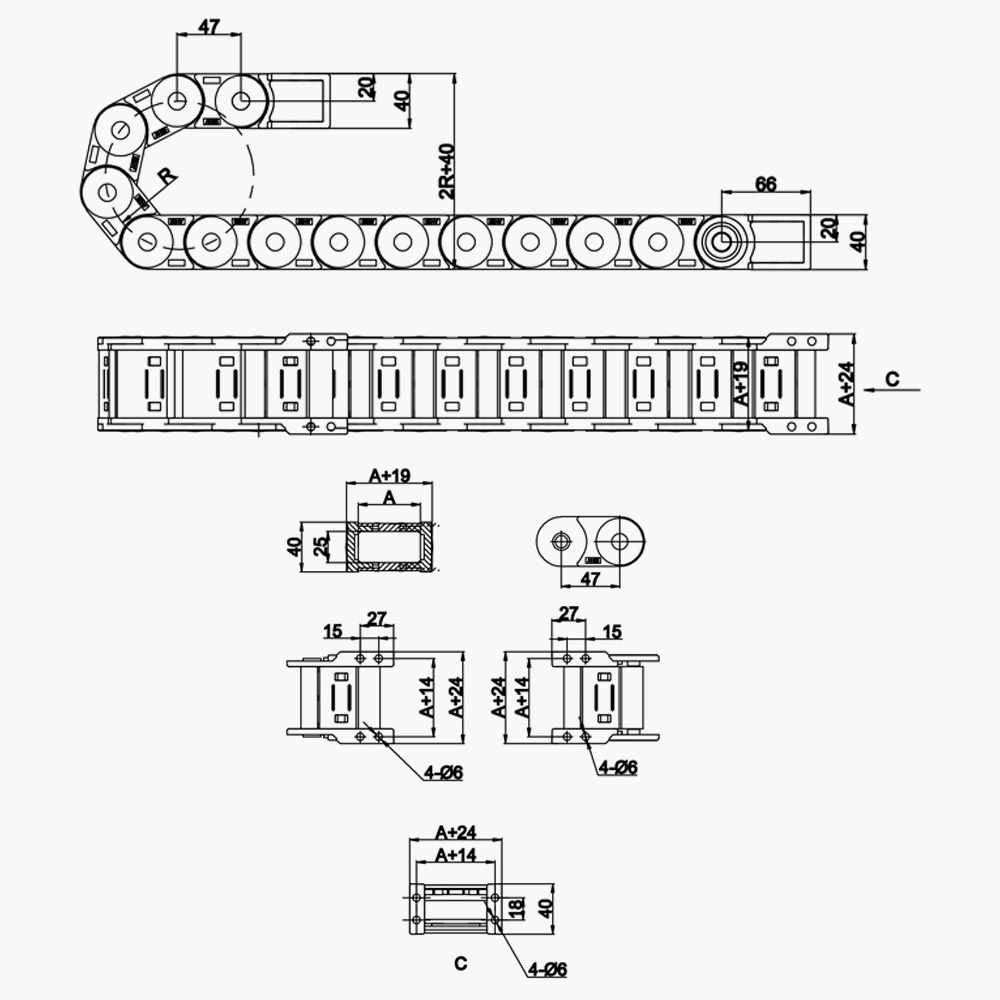

Umzobo wesakhiwo

KF25-uthotho-lufakwe ngokupheleleyo-Schematic

Isicelo

1. Inoxinzelelo oluphezulu kunye nomthwalo onzima, ukuqina okulungileyo, ukuqina okuphezulu kunye nokumelana nokunxiba, i-flame retardant, ukusebenza okuzinzileyo okuphezulu kunye nokushisa okuphantsi, kwaye inokusetyenziswa ngaphandle.

2. Ukumelana: ukuxhathisa kweoli, ukuxhathisa ityuwa, kunye ne-asidi ethile kunye nokumelana ne-alkali.

3. Ubomi obude bokusebenza.

Ukuhlelwa kwesicelo:Ifanelekile kwithuba lokuhamba ngokuphindaphindiweyo, kwaye inokutsala kunye nokukhusela iintambo ezakhiweyo, iipayipi zeoli, iipayipi zomoya kunye nemibhobho yamanzi.Ihlala isetyenziselwa izixhobo zoomatshini be-CNC, izixhobo zombane, izixhobo zamatye, oomatshini beglasi, oomatshini bomnyango kunye neefestile, ii-injection zokubumba oomatshini, ii-manipulators, ukuphakamisa ukuthutha, iindawo zokugcina iimpahla ezizenzekelayo, njl.
